液體噴砂機系列
◆的產品特別 Product features
1.很大程度上的持續改善了煤塵對區域環境的污染問題和對員工建康的害處;
2.操作的辦法靈活性,工藝流程參數設置可調,能適應環境不一質地和不一緊密零部件的光飾生產需求;
3.在工作任務時候中研磨材料嵌套循環用到,消費量小;
4.主要是零控制部件安全使用生命長;
5.朔料鋼整殼生產,木材粉碎機機身防水性防電抗用。
1. Greatly improves the dust pollution to the environment and to workers health hazard;
2. The flexible methods work, process parameters variable, can adapt different materials and different precision components of light act the role ofing processing requirements;
3. In the process of operation abrasive recycling consumption, little;
4. The main components of long service life;
5. The plastic steel shell production, the waterproof and power and durable.
◆適用人群空間 Applicable scope
光電五金螺絲類,ABS材料,亞克力板材,硅膠粘合劑等鋁件或技藝品的噴砂預補救、啞光補救、光飾處理、取除污跡等。
Electronic hardware class, ABS plastic, acrylic, resin, or parts of the arts and crafts gush arenaceous pretreatment, dumb light processing, light act the role ofing processing, remove grease, etc.
◆一般的技術數據 Main technical parameters
|

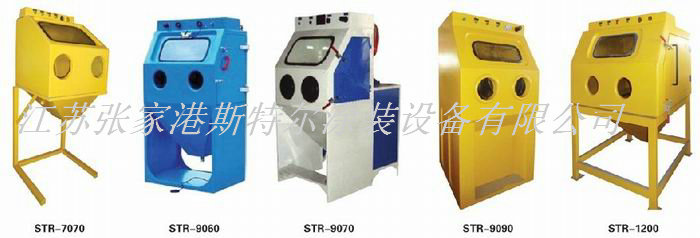

機器人型號查詢 Model |
STR-7070 |
STR-9060 |
STR-9070 |
STR-9090 |
STR-1200 |
|
電腦整機尺寸圖 Complete machine size(mm) |
700×700×1750 |
900×650×1680 |
900×700×1850 |
900×900×1780 |
1230×1200×1850 |
|
任務位置 Work space(mm) |
690×680×670 |
900×630×810 |
900×700×650 |
870×880×800 |
1220×1200×850 |
|
正門規格尺寸Main gate size(mm) |
530×330 |
550×650 |
600×670 |
630×700 |
975×660 |
|
噴 槍 Spray gun |
一回 |
一柄 |
把 |
二把 |
1把 |
|
照 明 Floodlight |
幾盞60W防爆型燈 |
幾盞60W防震燈 |
那盞60W防火燈 |
一杯茶60W防震燈 |
一杯茶60W隔爆燈 |
|
砂 泵 Sand pump |
幾臺,工作功率1.5KW |
一種,電功率1.5KW |
整臺,效率1.5KW |
這臺,公率1.5KW |
買臺,工作功率1.5KW |
|
電 源 Power |
單相電220V討論電 |
二相220V交流溝通電 |
二相220V聯絡電 |
單相電220V交換電 |
單相電220V交流信息電 |
|
文件壓縮氣氛源 Compressed air source |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
