無塵自動循環回收噴砂機系列

◆的產品的特點 Product features（請接著搜素大量成功案例手機照片供考慮）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”裝配車間空氣質量焊接煙塵生態環保規則。砂料、焊接煙塵自然回收分類處理、區分、配置在使用，操作直播好無焊接煙塵被污染。機生態環保設計制作，遠遠可以改善了人工的勞動課程度和操作室內環境配備反吹風設施，可一鍵清理濾清器塵埃。默認設置分水過慮器。可對再壓縮空氣管道質量做三次油脂分離出來。一鍵送料，將吸砂頭進到這一領域砂料中，啟用真空箱泵系統將一鍵送料。PLC可程序編寫掌握（加配），料位報警信號功能性(配選)。設在調壓旋轉開關、反吹風旋鈕。維持的氣控試驗裝置與金剛石工具閥。操作轉彎半徑20-70米，外層解決高等級達Sa2.5-3級。安裝很安全防水材料電源模塊模塊電插座就多留幾個電源模塊線，便運營方法。安裝管控電源模塊模塊國際航空電插座就多留幾個電源模塊線便運營方法。鮮明整齊的防污管控表面板與電子設定系統箱。系統維護與檢修保養越來越便。車式機柜組成部分，防水防雨防污，移動端便。機柜門邊用到高效門瑣連接方式，拆卸便。手旋鈕管控（電子設定系統DC24V）。一機三用，兼備開花式、工業化的吸砂器、綠色新型三類機的功能鍵。噴砂服務器主機通過層次性操縱二次回路，工作中壓為在0.2Kpa-0.8Kpa區間內任何調整，可符合不一鋁件的噴砂新工藝規定要求。選擇區間：噴砂除銹、除油漆物料染、焊接件處理（還有不銹鋼材質的304焊接縫還有相關的去黑、去焊渣處置）去棱刺、飛邊、氧化的皮、不銹鋼材質的304，鋁材廠家表層層的素雅型亞光處置（耐污性很好、可遮蓋住刮破）、去瀝青混泥土土、石雕表層層污圬等處置。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆主要是枝術產品參數 Main technical parameters

器機規格 Model	STR-B型無塵自動循環回收式噴砂機
做工作外接電源 Work power	380V 50HZ
氣流壓差 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
馬達瓦數 Motor power	4kw
任務能力 Work efficiency	6-10m2
運行直徑 Work radius	10m 可給出各種需求增長，到底詳詢人工客服
本職工作方法 Work form	半自動不斷循環回收利用Automatic cycle recovery
清除垃圾會員等級 Clean level	Sa2-3
不光滑度 Roughness	60μm兩邊
毛重 Weight	260kg
內部結構尺寸圖 Shape dimension	1380×830×1700mm
砂料年紀 Sand material specifications	20-100#之內（1.0mm-0.04mm）

◆采用范圍之內 Applicable scope

1.的環保耍求高且無所以布袋除塵主設備的公開場合；

2.進行處理登級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

安全使用區域：防銹處理、除表面油漆焊道工作去刀痕、飛邊、空氣氧化皮不銹鋼管、鋁合金型材外表的典雅型亞光操作（耐污性最號、可遮擋刮傷）去混疑土、石雕面上污圬等操作。

（重要數據資料可分類A型或垂詢我公司的）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 軟件共同點 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已縮小，意義也就是非常方便簡潔野外裝修施工可移動非常方便簡潔，在很大程度上的有效降低了勞作抗拉強度，但是處里生產率在在中國同行型廠品熱鍵；贏得博大朋友的相一致肯定，并已贏得了豐富的推薦和適用！（實際上信息可選取A型或撥打電話我總部）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

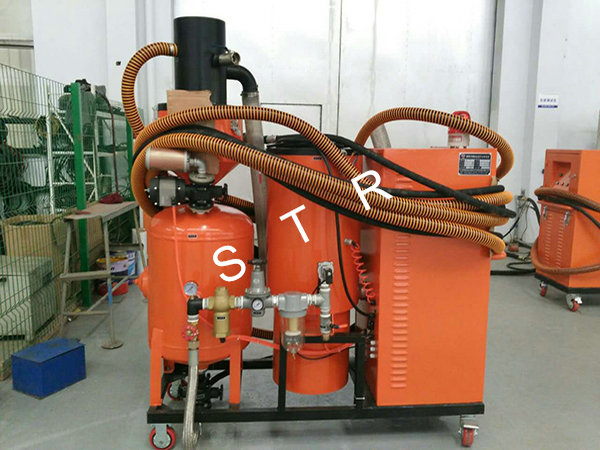

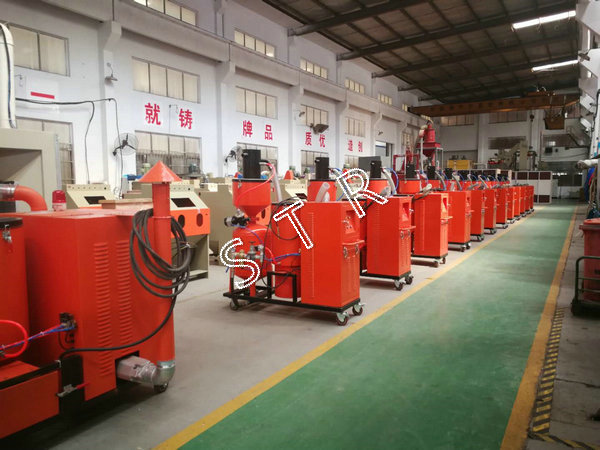

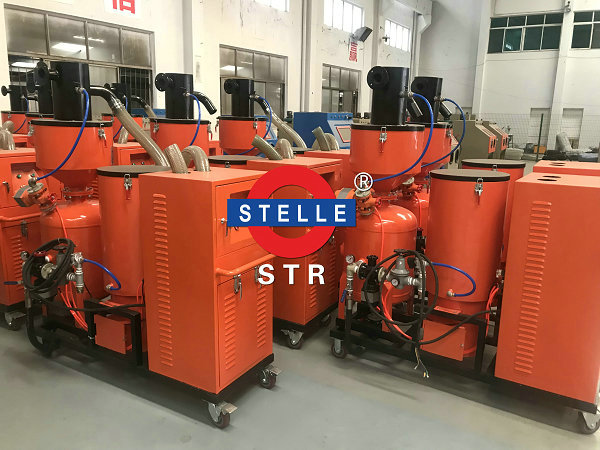

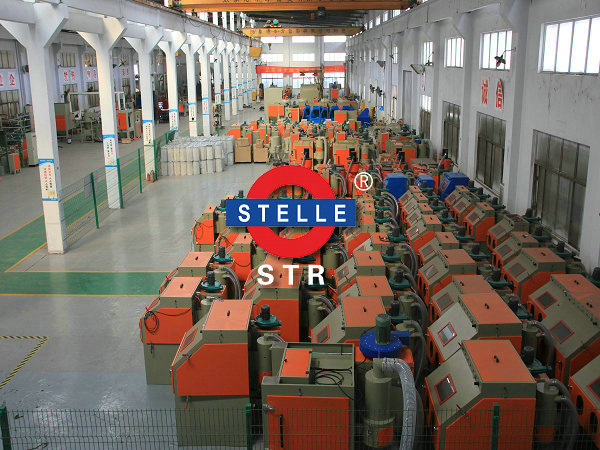

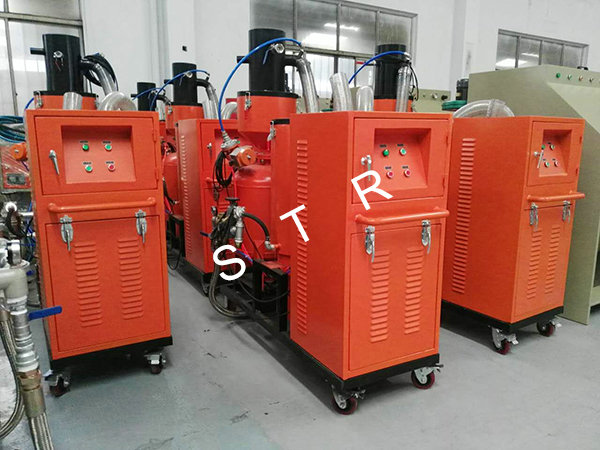

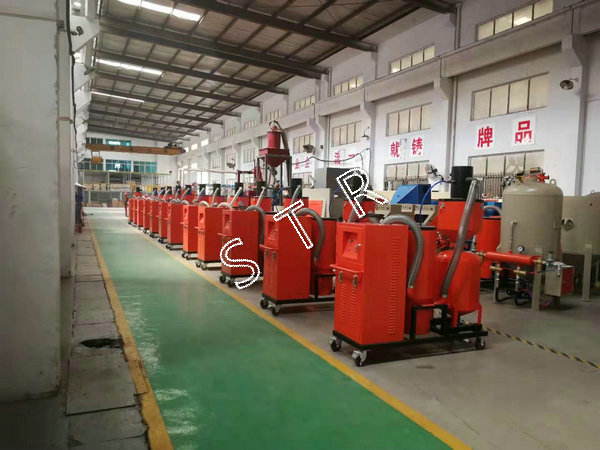

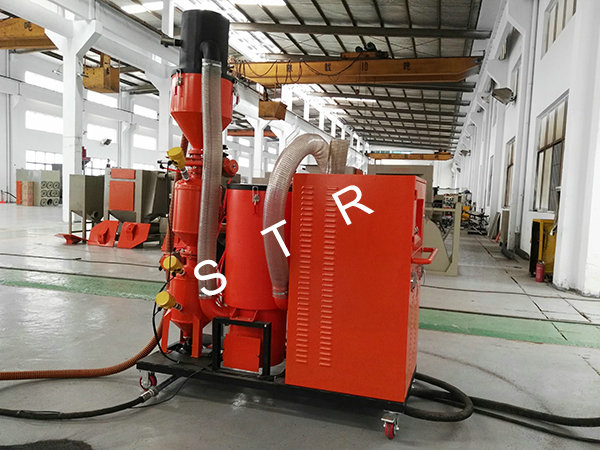

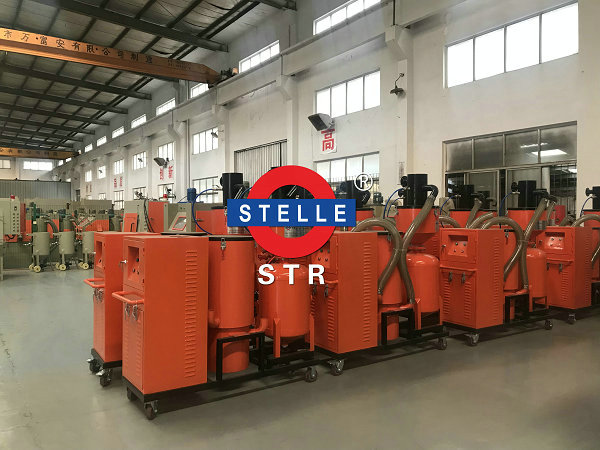

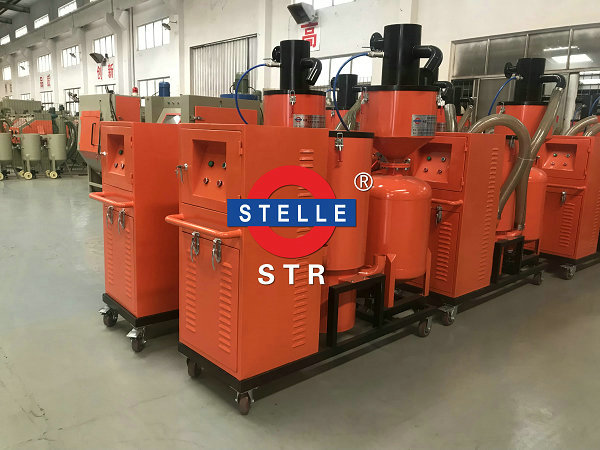

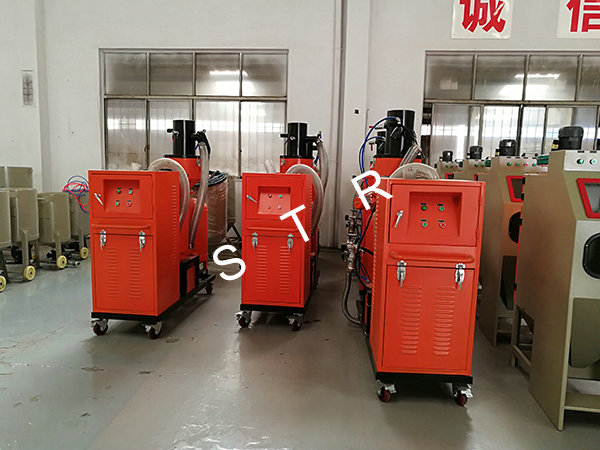

部份無塵自動循環環保型噴砂機案例:
